H.O. SCHLÜTER ALUCLIP ZERO

System_76-MD_AluClip-Zero_flaechenbuendi

Our AluClip Zero system is a design variant unique on the market and has already been tried and tested in several building projects.



This system comes in three variants; One presenting a completely flush-mounted look and virtually flush glazing plane, a second with a classical wood-aluminum look and the same glass plane as fixed glazing, and the third variant with all glass look where the window sash and pane are virtually flush-mounted.



Designed specifically for demanding architectural projects, it can bring its advantages to bear exactly where the aluminum look is just as important as the functional benefits of uPVC.

Different U-values are possible depending on the frame/sash combination, glass, and steel insert. Contact us for more details.

Features and Benefits

  • Extraordinary thermal insulation compared with aluminum windows. Typical U-values are between 0.21 - 0.23 Btu/hr-sq ft-°F

  • Steel-reinforced chambers for effective protection against unwanted intruders.

  • Excellent sound reduction properties - Up to 46 dB.

  • Unlimited choice of RAL colors and finishing techniques such as anodizing and powder coating.

  • Available in Parallel or Tilt Turn opening for maximum ventilation and security.

Color Options and Finishes

Aluminum covers are ideal for individual designs. They come in countless RAL colors and diverse finishing options like powder or anodized coatings. Contact us for more details.

Specification

Min. U-Value  (1230 x 1480 mm window)

Fire Resistance (ASTM E84)

Air Leakage Resistance (ASTM E283-04)

Water Penetration Resistance (ASTM E547)

Performance Class (NAFS 08-11)

Performance Grade (NAFS 08-11)

Burglar Resistance (ASTM F588)

Sound Transmission Class (ASTM E413-16)

OITC (ASTM E1332-16)

Volatile Organic Compounds (AgBB)

0.14 Btu/hr-sq ft-°F

Class A

Pass A3

Pass - PG 100

LC, CW, AW

35-70

Grade 20 / 40

43 (maximum)

36 (maximum)

Pass

Frame Depth

Minimum Frame Length

Maximum Frame Length

Minimum Glass Thickness

Maximum Glass Thickness

Minimum Sash Width

Maximum Sash Width

Minimum Divider Width

Sash + Frame Sightline

Sash + Floating Mullion Sightline

99 mm

120 mm

3400 mm

36 mm

56 mm

500 mm

2500 mm

26 mm

112 mm

N/A

Related Images

System_76-MD_AluClip-Zero_flaechenbuendi

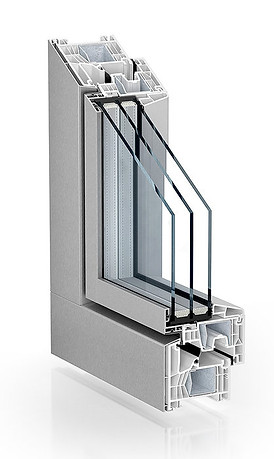

Variant 1 - Flush mounted look. Virtually flush-mounted glass pane with glazing up to 56 mm.

System_76-MD_AluClip-Zero_flaechenverset

Variant 2 - Wood and Aluminum window look. The glass pane lies on the same level in sash windows as in fixed glazing.

System_76-MD_AluClip-Zero_Ganzglasoptik-

Variant 3 - All-glass look, sash invisible from the outside. Virtually identical sash and glass level.

KBE 76 AluClip Zero profile variant 1.pn

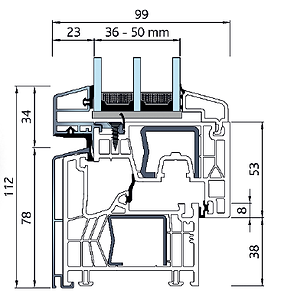

KBE 76 AluClip Zero profile variant 2.pn
KBE 76 AluClip Zero profile variant 3.pn
